Example Projects

Example Projects

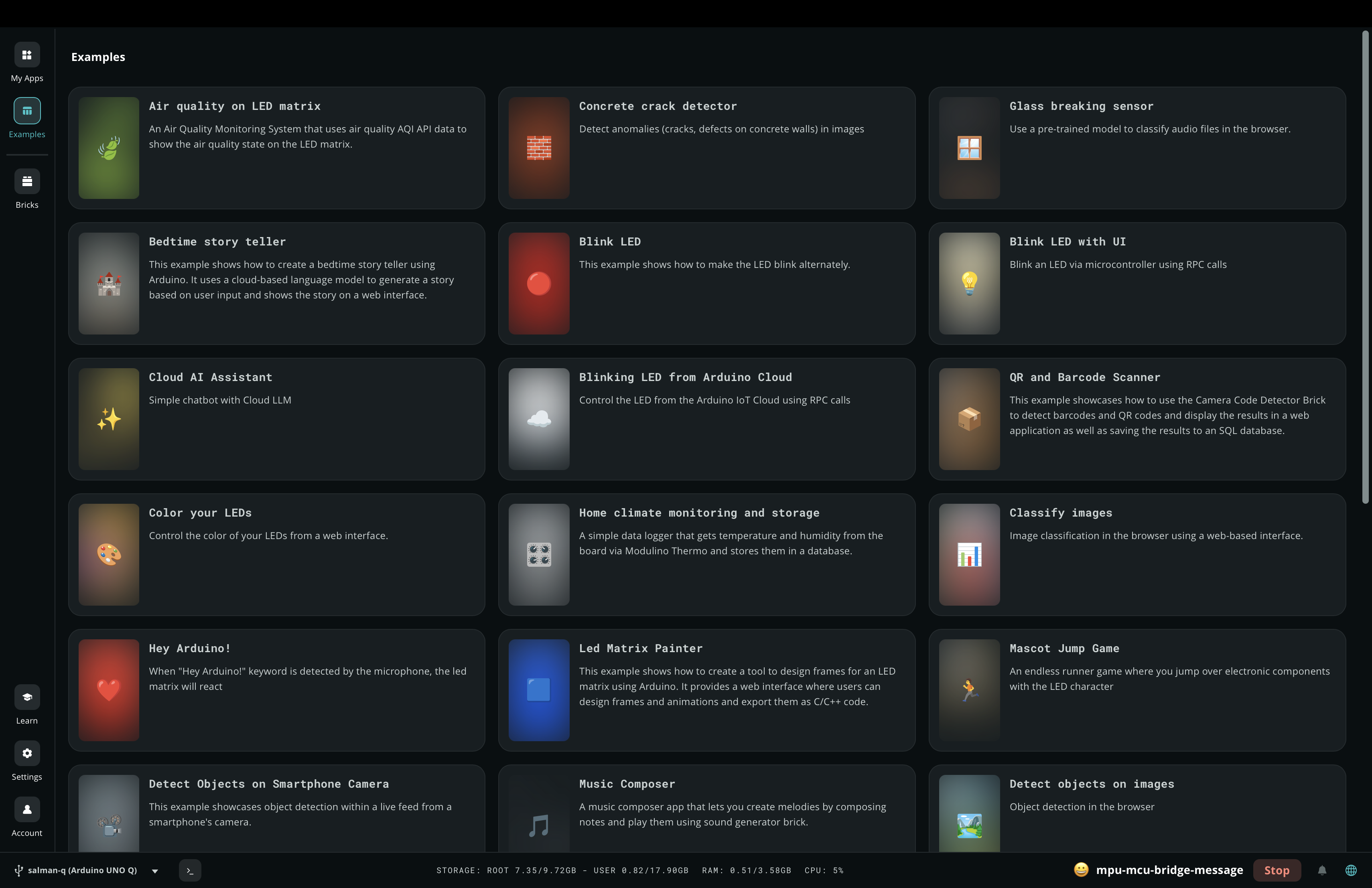

A collection of example projects available in Arduino App Lab. Use these as a starting point, reference, or inspiration for your own builds.

Examples​

  • Blink LED — turns the built-in LED on and off on a timer. The simplest possible sketch to verify your board is working.

  • Blink LED with UI — same as Blink, but with a web interface served by the Python side that lets you toggle the LED from a browser.

  • Air Quality on Matrix — reads data from an air quality sensor and visualises it on the onboard LED matrix in real time.

  • UNO Q Pin Toggle — a web UI that lets you manually set digital pins HIGH or LOW, useful for testing wiring and connected components.

  • Bridge Echo — Python sends a string to the Arduino via the Bridge, and the Arduino echoes it back to the shared Monitor console. A good first look at two-way Bridge communication.

  • Camera Stream — streams live video from a connected USB or CSI camera to a browser-accessible interface hosted on the board.

tip

Click Copy and edit app on any example before modifying it — you cannot edit built-in examples directly.
